20 kW Enclosed
Diesel Generator

PTI-20ENC

20 kW Enclosed Diesel Generator by PowerTech Mobile Generators
Experience dependable, low-noise performance with the PTI-20ENC, a 20 kW enclosed diesel generator built for demanding commercial environments. Designed for quiet operation and long-term reliability, this mobile unit is an excellent choice for specialty vehicles and custom applications. With flexible configuration options, the PTI-20ENC provides a solid foundation for building the ideal power solution tailored to your specific requirements.
Request a Quote
Specifications

Features

  • Quick Access Door

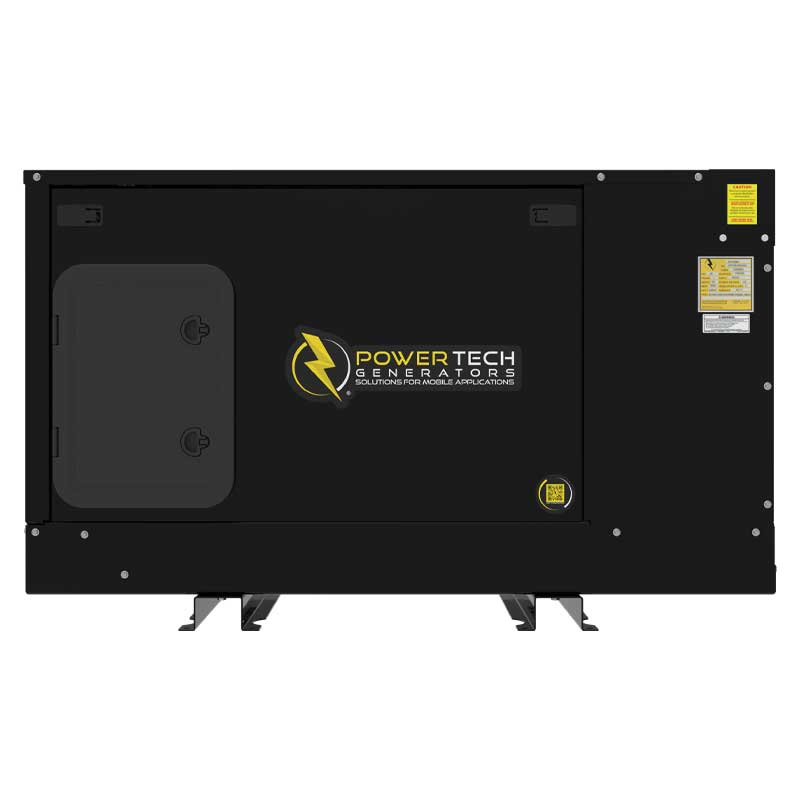

  • Single Side Service
  • Quiet Enclosure
  • Compact
20 kW Enclosed Diesel Generator by PowerTech Mobile Generators

Upgrade your 20 kw generator

with Add-ons

Enhance your custom PowerTech generator with a wide range of available add-ons designed to boost performance and efficiency. From specialty vehicles to custom trailers, our upgrade options help you get the most out of your power solution. Our experienced sales and engineering team is here to guide you in choosing the right enhancements to fit your specific needs.

Slide Rack

remote control panel

Remote Radiator

fuel Tank

Airflow of Diesel Enclosed Generator

PTI-20ENC Airflow

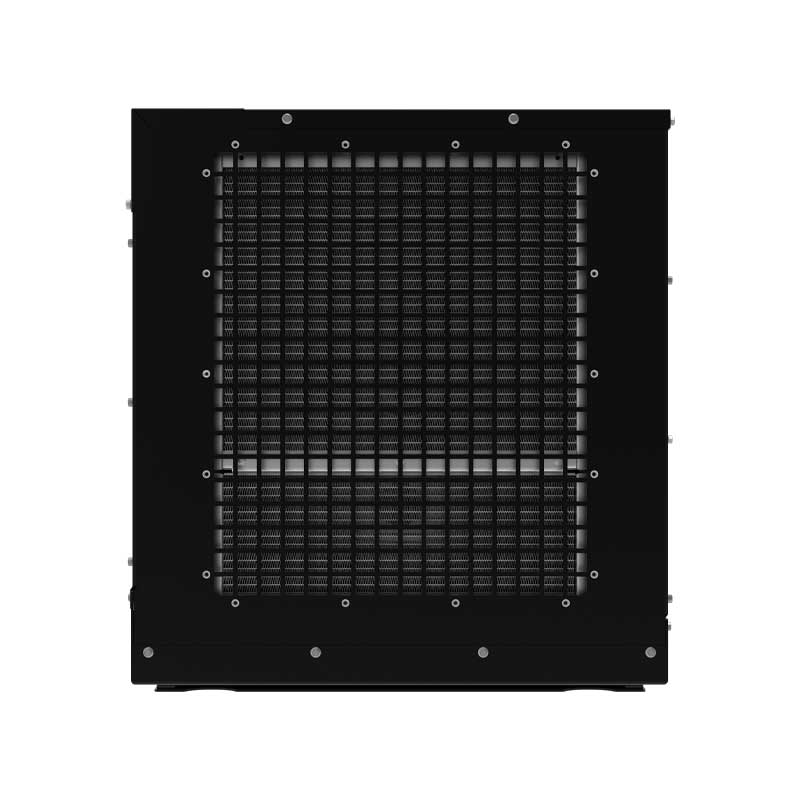

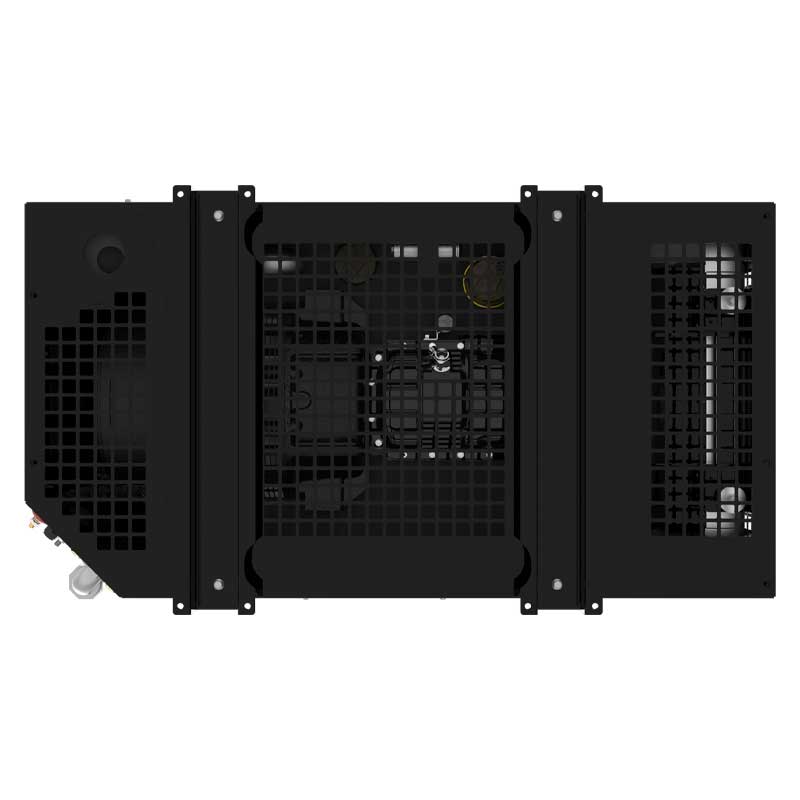

The PowerTech PTI-20ENC quiet enclosed 20 kW diesel generator is built with an advanced airflow system that delivers reliable performance, even in hot and demanding conditions. Air is pulled in through the base pan, filtered, and directed through the engine compartment to cool critical components. It’s then pushed out through the radiator side, effectively removing heat and protecting sensitive parts from overheating. This smart airflow design helps maintain consistent operation under load and is a signature feature of PowerTech generators, offering superior cooling efficiency and durability for mobile power applications in high-temperature environments.

Genset Information

  • Weight: 965 LBS
  • Overall Dimensions: 54″L X 29 1/4″W X 30 5/8″ H
  • Fuel Type: Ultra-Lw Sulfur Diesel (ULSD)
  • Fuel Consumption: Full Load 2.3 GPH, Half Load 1.2 GPH
  • Fuel Lift Pump: Genset Mounted, Electric, 18″-24″ Max Vertical Lift
  • Service Interval: 250 Hours
  • Engine Coolant: Dex-Cool, Ethylene Glycol, 50/50, 10 QTs
  • Engine Oil: 15W-40, 8 QTs
  • Engine Electrical System: 12VDC
  • Starting Battery, 12V 500 CCA, Min. (Battery Not Included with Generator Set)
  • Fuel Bulkhead Fittings: 1/4″ NPT
  • Fuel Lines: Supply 3/8″, Return 3/8″
  • Exhaust Outlet 2″ NPT

Disclaimer: Weights and dimensions shown may vary and are for guidance only. Please confirm with your PowerTech Sales Representative before ordering.

Engine Specification

  • Make: Isuzu
  • Model: 4LE2T
  • Engine Type: Diesel, 4 Stroke
  • Configuration: Vertical In-Line, OHV, Liquid Cooled
  • Cylinders: 4

Generator End Specifications (Single Phase)

  • Type: Synchronous A/C Generator
  • Exciter Type: Self-Excited, Brushless, AVR Equipped
  • Rotor Support: Single Bearing
  • Frame Type: Open
  • Cooling: Fan Cooled
  • Insulation Class: H
  • Winding Pitch: 2/3
  • Ambient Temperature: 40 C
  • Temperature Rise 125 C
  • Service Rating: Continuous
  • Voltage: 240VAC
  • Frequency: 50/60 Hz
  • Power Factor 1.0
  • Phase: 1
  • Number of Poles: 4
  • Number of Leads: 4
  • Voltage Regulation: +/- 1%
  • Harmonic Distortion: <4%
  • Loading Recovery Time: <500 msec
  • Load Imbalance Allowed 25% (Maximum)

Generator End Specifications (Three Phase)

  • Type: Synchronous A/C Generator
  • Exciter Type: Self-Excited, Brushless, AVR Equipped
  • Rotor Support: Single Bearing
  • Frame Type: Open
  • Cooling: Fan Cooled
  • Insulation Class: H
  • Winding Pitch: 2/3
  • Ambient Temperature: 40 C
  • Temperature Rise 125 C
  • Service Rating: Continuous
  • Voltage: 480VAC
  • Frequency: 50/60 Hz
  • Power Factor 0.8
  • Phase: 3
  • Number of Poles: 4
  • Number of Leads: 12
  • Voltage Regulation: +/- 1%
  • Harmonic Distortion: <4%
  • Loading Recovery Time: <500 msec
  • Load Imbalance Allowed 25% (Maximum)

Main Circuit Breaker

  • Number of Poles: 3
  • Trip Type: Fixed Thermal, Fixed Magnetic
  • Max Rated Voltage: 600VAC
  • Interrupt Rating 18kAIC@ 240VAC, 14kAIC @480VAC
  • Frequency Rating: 50/60 Hz
  • Direct Short Trip Time: 10 msec

Generator Power Output at 60Hz - 20kw

Phase
Power Factor
Voltage
Amps
1
1.0
120
166
1
1.0
120/240
166/83
3
0.8
120/208
69
3
0.8
277/480
30

Generator Power Output at 50Hz - 16.6kW

Phase
Power Factor
Voltage
Amps
1
1.0
220
75
1
1.0
230
72
3
0.8
219/380
31
3
0.8
231/400
30

Generator controller Specifications

  • Make: Dynagen
  • Model: TG 600
  • Display: 4.3″, Color, Sunlight Readable
  • Moisture Resistance: IP67
  • Communication: CAN Bus J1939, RS-485 (Modbus)
  • Switched Inputs: 12
  • Switched Outputs: 10
  • Analog Inputs: 10

Standard Controller Monitoring and Shutdown

System
Warning
Shutdown
Oil Pressure
X
X
Coolant Temperature
X
X
Coolant Level
X
Fuel Filter Restriction
X
Air Filter Restriction
X
Generator Voltage
X
X
Generator Frequency
X
X
Generator Over Current
X
X
Engine Speed
X
X

Generator Decibel Level

dB Level
Location
Distance
Generator Load
71.0
Service Side
7 Meters
1/2 Load
77.0
Radiator End
7 Meters
1/2 Load
71.4
Non-Service Side
7 Meters
1/2 Load
71.7
Generator End
7 Meters
1/2 Load

Relative Decibel Level Information

dB Level
Pressure Rise in Pa
Source
180+
20,000
Space Shuttle Launch
160-179
2,000
NHRA Dragster
140-159
200
Jet Engine, Fireworks
120-139
20
Rock Concert, Police Siren
100-119
2
Lawn Mower, Helicopter
80-99
0.2
Semi-Truck, Hair Dryer
60-79
0.02
Normal Conversation, City Traffic
40-59
0.002
Whispering
20-39
0.0002
Quiet Bedroom
0-19
0.00002
Hearing Threshold

Generator options

  • Exhaust Exit Down
  • Exhaust Exit Rear
  • Exhaust Exit Service Side
  • High Lift Fuel Pump, 120″ Max Vertical Lift
  • Emergency Stop Programming and Pigtail
  • Fuel Level Sender Programming and Pigtail
  • Low Battery Auto Start Programming
  • Other Options May Be Available Upon Request
